| Chipsets |
Bluetooth |
Qualcomm QCC518x Series |
| |
DSP |
CT5302 |
| |
DAC |
ES9023 |
| |
Amp |
MAX97220 |

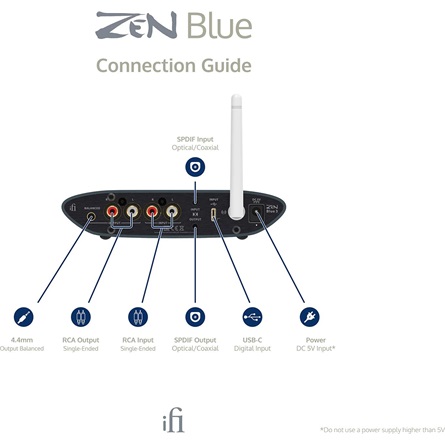

| Inputs |
RX Mode |
Bluetooth 5.4 (aptX Lossless, aptX Adaptive, aptX, LDAC, LHDC/HWA, AAC, SBC) |
| |
TX Mode |
USB |
| |
|
Optical |
| |
|
Coaxial |
| |
|
RCA L/R (Analogue) |
| |
DAC Mode |
USB |
| |
|
Optical |
| |
|
Coaxial |
| |
|
RCA L/R (Analogue) |

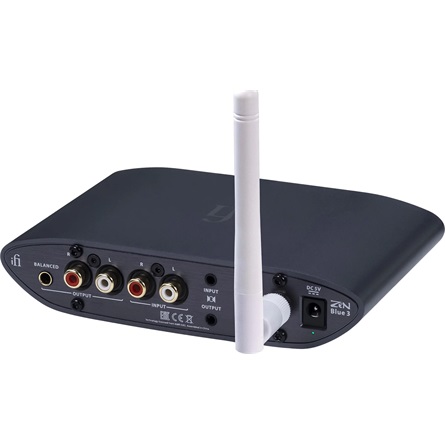

| Outputs |
RX Mode |
Optical |
| |
|
Coaxial |
| |
|
RCA L/R |
| |
|
Balanced 4.4mm |
| |
TX Mode |
Bluetooth 5.4 (aptX Lossless, aptX Adaptive, aptX, LDAC, LHDC/HWA, AAC, SBC) |
| |
DAC Mode |
Optical |
| |
|
Coaxial |
| |
|
RCA L/R |
| |
|
Balanced 4.4mm |
| Maximum Supported Sample Rate |
RX Mode |
96kHz/24Bit |
| |
TX Mode |
96kHz/24Bit |
| |
DAC Mode |
96kHz/24Bit (USB) |
| |
|
192kHz/24Bit (Optical/Coaxial) |
| Output Voltage |
Balanced 4.4mm |
4.1Vrms (0dBFS@1kHz) |
| |
Single-Ended RCA |
2.05Vrms (0dBFS@1kHz) |
| Output Impedance |
Balanced 4.4mm |
≤102Ω |
| |
Single-Ended RCA |
≤51Ω |
| SNR |
|
109dB |
| DNR |
|
109dB (0dBFS @ 1kHz) +A |
| THD+N |
|
< 0.005% (10K Load)@(20-20kHz) |
| Frequency Response |
|
|
| Power Supply Requirement |
|
USB-C or DC 5V/≥0.5A (centre +ve) |
| Power Consumption |
|
<1W |
| Dimensions |
|
158 x 115 x 35 mm (6.2" x 4.5" x 1.4") |
| Net Weight |
|
447 g (0.99 lbs) |
